Oil Pump Installation Note

  1. Install the oil pump using the following procedure:

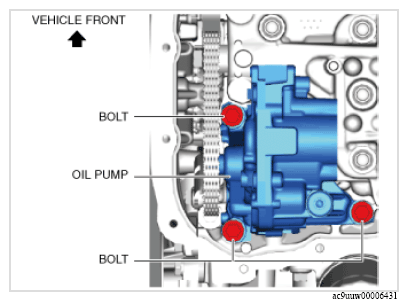

    1. Temporarily tighten the three bolts shown in the figure below.
      G13107998Courtesy of MAZDA MOTORS CORP.

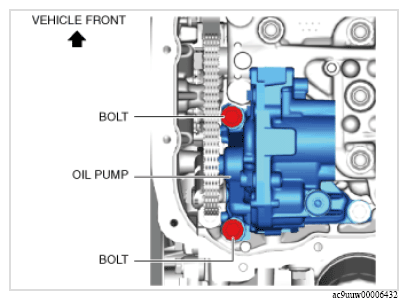

    2. Tighten the two bolts shown in the figure below to the specified torque.
      G13107999Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • The tightening order for the two bolts is optional.

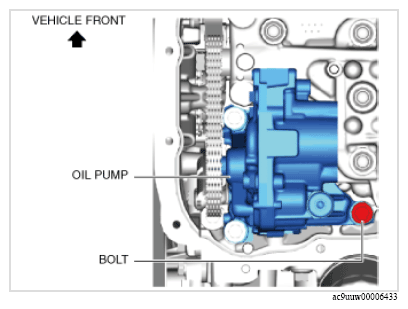

    3. Finally, tighten the bolt shown in the figure below to the specified torque.
G13108000Courtesy of MAZDA MOTORS CORP.
