Notification And Warning Amplifier Removal/Installation

CAUTION:

When replacing the notification and warning amplifier, perform the configuration to assure that the system operates correctly.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
Disconnect the connector.

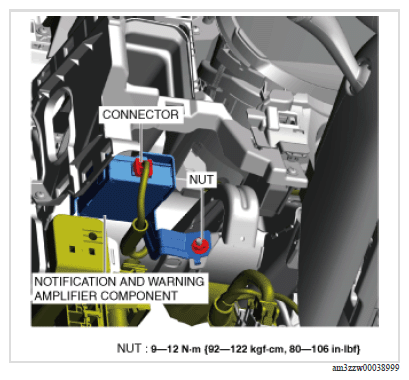

Fig 1: Notification And Warning Amplifier Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
Remove the notification and warning amplifier component.
Remove the screws.

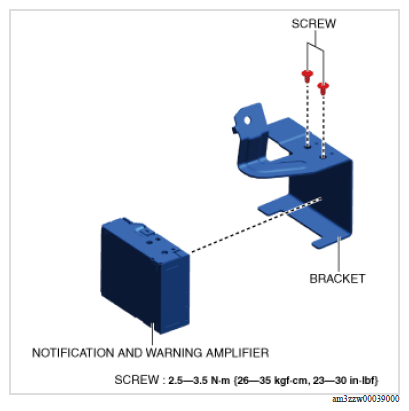

Fig 2: Notification And Warning Amplifier From Bracket Screws With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the notification and warning amplifier from the bracket.
Install in the reverse order of removal.
When replacing the notification and warning amplifier, perform the notification and warning amplifier configuration using the M-MDS. (Refer to [CONFIGURATION] in the service information)
