Switch Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

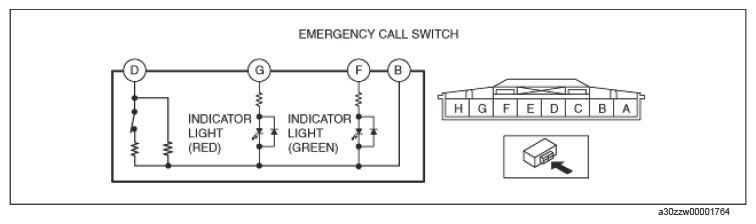

Verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the emergency call switch. (See EMERGENCY CALL SWITCH REMOVAL/INSTALLATION .)
