WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION
CAUTION:
- When replacing the wireless charger (Qi), perform the configuration to assure that the system operates correctly.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION )
- Remove the following parts:
- Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] )
- Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION )
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION )
- Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION )

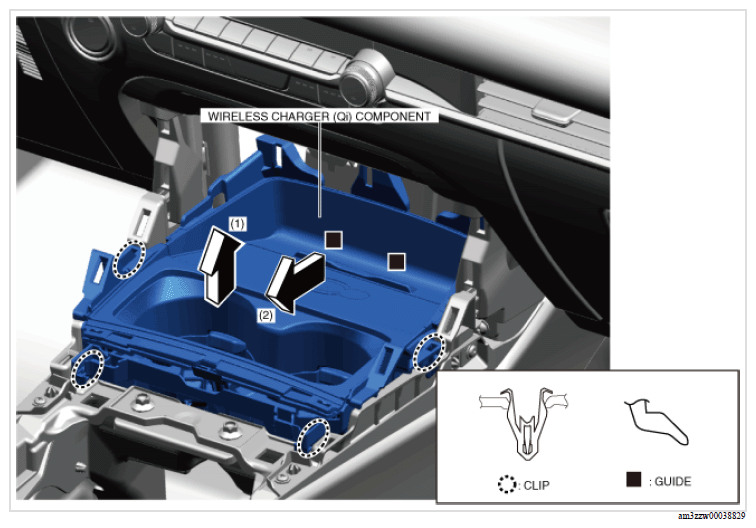

- Move the wireless charger (Qi) component in the order of arrows (1) and (2) shown in the figure below, and remove it while detaching the clips and guides.
- Disconnect the connector.
- Remove the cup holder (See CUP HOLDER REMOVAL/INSTALLATION )
- Remove the wireless charger (Qi).
- Install in the reverse order of removal.
- When replacing the wireless charger (Qi), perform the wireless charger (Qi) configuration using the M-MDS. (Refer to [CONFIGURATION] in the service information.)
