WIRELESS CHARGER (Qi) DISABLING PROCEDURE

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Wireless charger (Qi) component (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
  3. Wrap cushioning tape around the connector.
    NOTE:
    • To prevent interference between the disconnected connector and the vehicle interior, wrap commercially available cushioning tape (length: 80 mm {3.1 in} x width: 50 mm {1.97 in} x thickness: 5 mm {0.2 in}) around the connector.
    G16798716Courtesy of MAZDA MOTORS CORP.

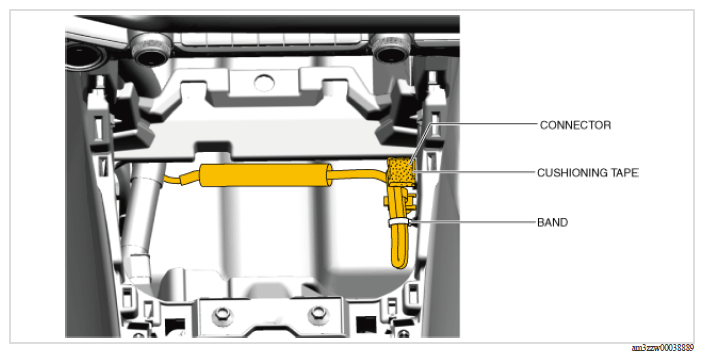

  4. Secure the wiring harness with the band at the position shown in the figure below.
    G16798717Courtesy of MAZDA MOTORS CORP.
  5. Install the following parts:
    1. Wireless charger (Qi) component (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    2. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
  6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
