Vehicle Rear Side

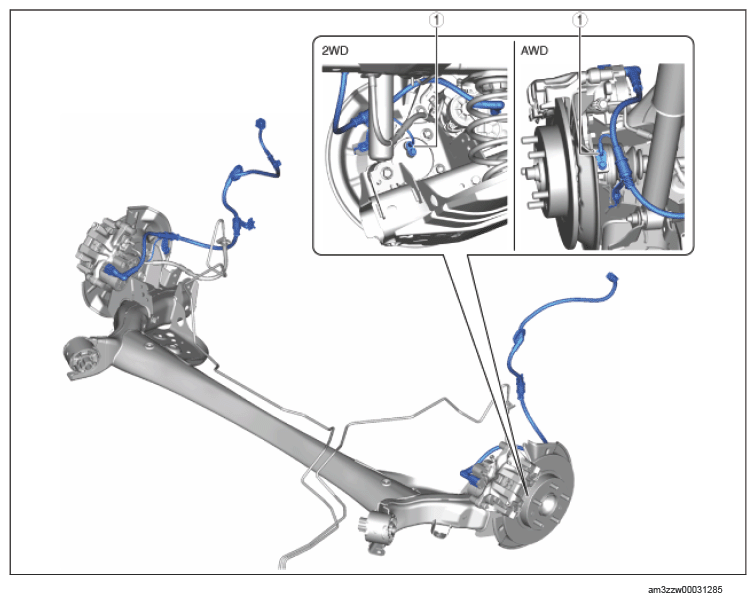

Fig 1: Dynamic Stability Control Components Location - Vehicle Rear Side
G14580967Courtesy of MAZDA MOTORS CORP.
DYNAMIC STABILITY CONTROL COMPONENT OPERATIONS

Component no. Refer to
1 Rear ABS wheel-speed sensor
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD] .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD] .)
