Trunk Side Trim Removal/Installation: 4SD
- Remove the following parts:
- Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION .)
- Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
- Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)

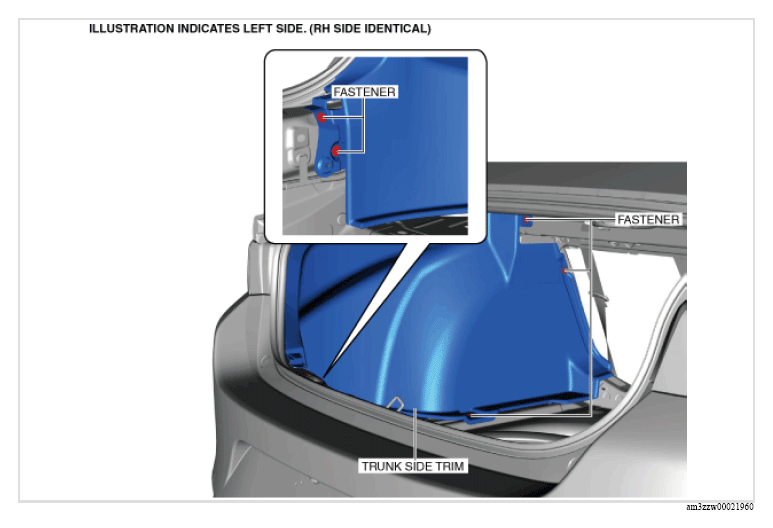

- Remove the fasteners.

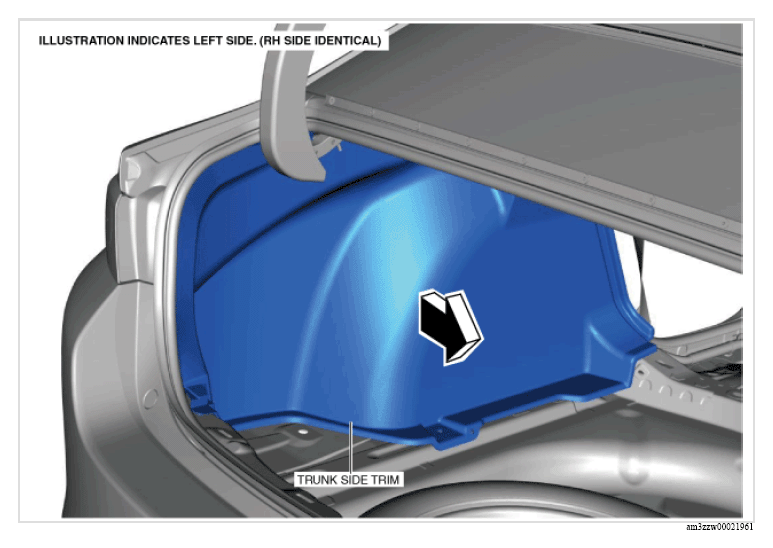

- Move the trunk side trim in the direction of the arrow shown in the figure below.
- Install in the reverse order of removal.
