Trunk Board Removal/Installation: 4SD

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

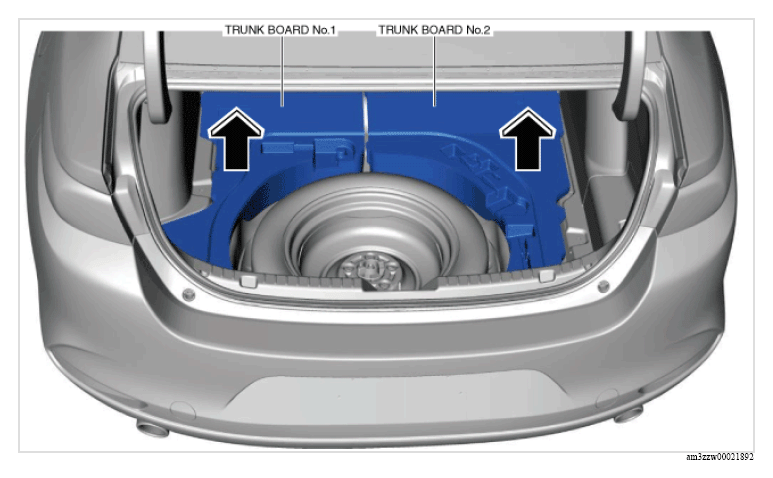

  2. Remove trunk board No. 1 in the direction of the arrow shown in the figure below.
    G13179544Courtesy of MAZDA MOTORS CORP.
  3. Remove trunk board No. 2 in the direction of the arrow shown in the figure below.
  4. Install in the reverse order of removal.
