Lower Panel Removal/Installation: Center

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION .)
    6. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    9. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    10. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    11. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    12. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    13. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    14. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    15. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)

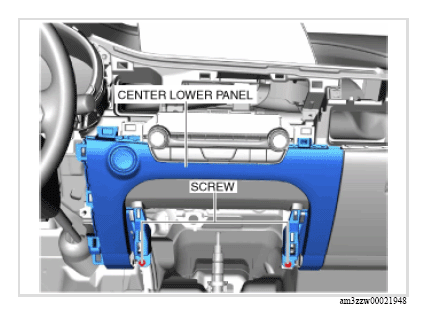

  3. Remove the screws.
    G13179480Courtesy of MAZDA MOTORS CORP.

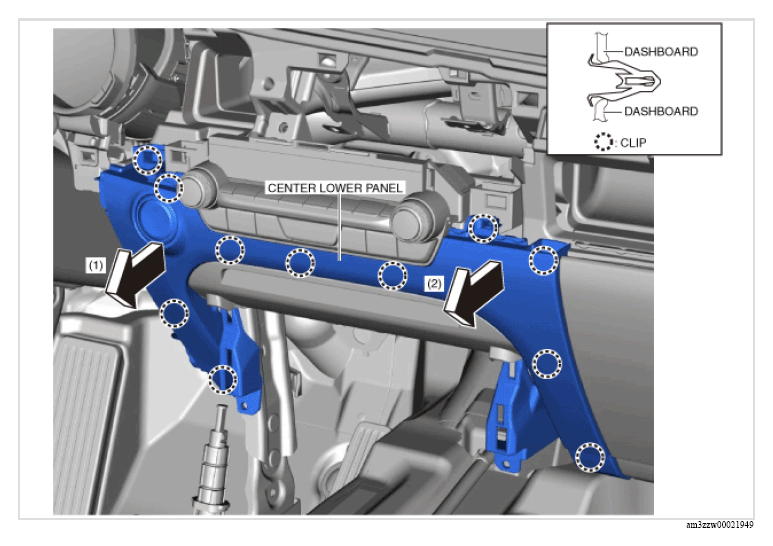

  4. Move the center lower panel in the order of arrows (1) and (2), and remove it while detaching the clips.
    G13179481Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the push button start connector.
  6. Install in the reverse order of removal.
