Lower Panel Disassembly/Assembly: Driver-side

  1. Disassemble in the order indicated in the table.

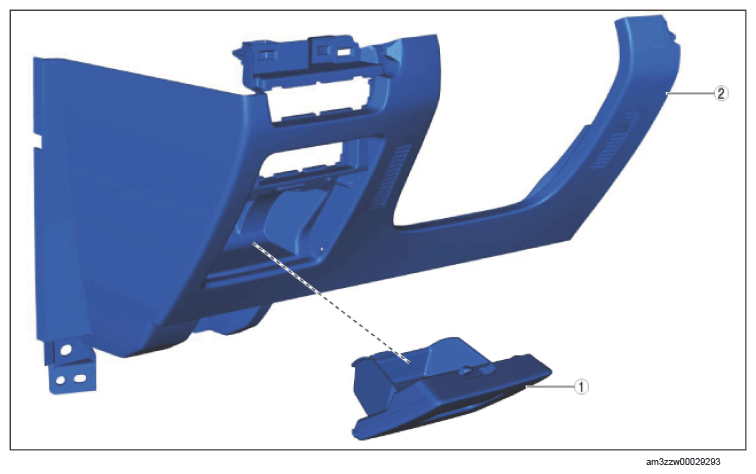

    G14583991Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Pocket
    2 Driver-side lower panel
  2. Assemble in the reverse order of disassembly.
