Headliner Removal/Installation
>>
Headliner Installation Note
Headliner Installation Note

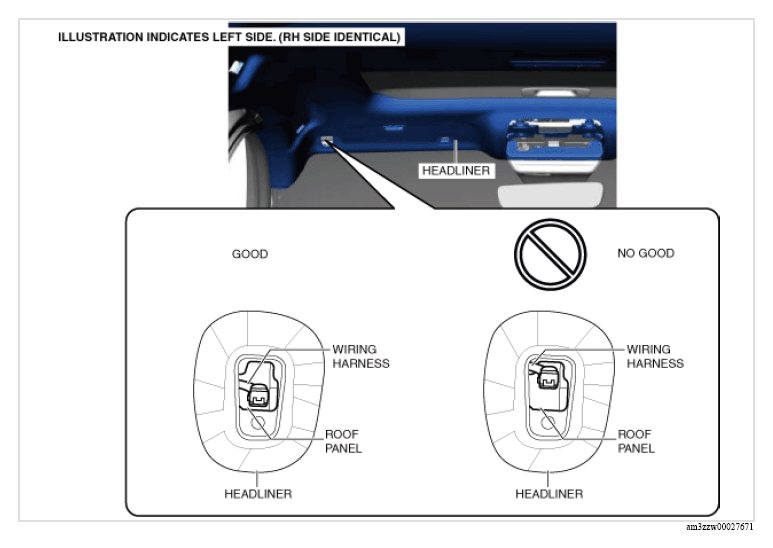

Set the wiring harness to the position shown in the figure below so that it does not get caught between the roof panel and the headliner.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
