Cup Holder Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

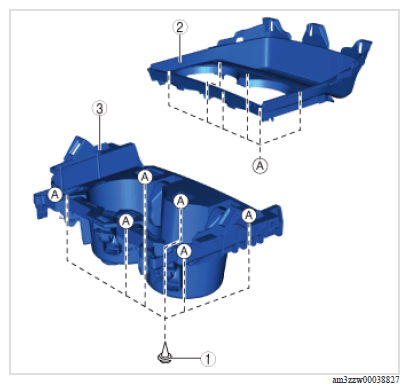

    G16798154Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Screw
    2 Box mat
    3 Cup holder
  2. Assemble in the reverse order of disassembly.
