Connectivity Master Unit: Construction

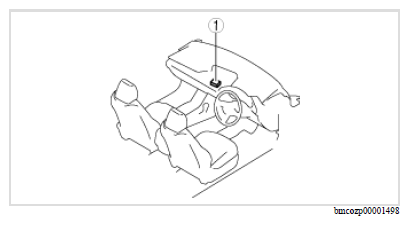

• The connectivity master unit (CMU) is located centrally inside the dashboard.
• The connectivity master unit (CMU) has an integrated Bluetooth® driver and antenna.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no	Refer to
1	Connectivity master unit (CMU)
