Drive efficiency monitor

• The energy efficiency history and settings are switched and displayed by selecting each item in the center display.

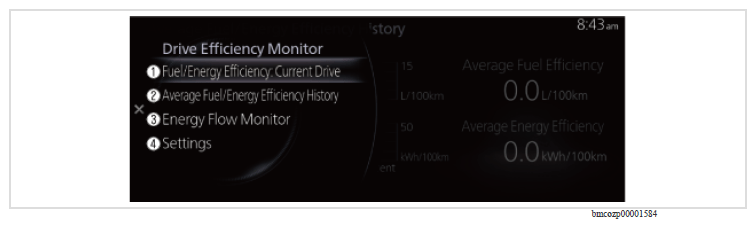

Drive efficiency monitor verification procedure

1. Select the "Information" button on the Home screen.
2. Select [Drive Efficiency Monitor] on the information screen to display the warning guidance.
   • The buttons on the menu screen operate as follows:

     Courtesy of MAZDA MOTORS CORP.

     MENU CONTENT DESCRIPTION



     Menu		Content
     1	Fuel/Energy efficiency: Current drive	Displays the information regarding the current fuel economy/electrical power consumption rate.
     2	Average fuel/energy efficiency history	Displays the information regarding the past fuel economy/electrical power consumption rate.
     3	Energy flow monitor	Displays the system operation status.
     4	Settings	Displays the settings for the fuel efficiency monitor.
