Condenser Removal/Installation: 4SD

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
2. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
4. Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION .)
5. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
6. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
7. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

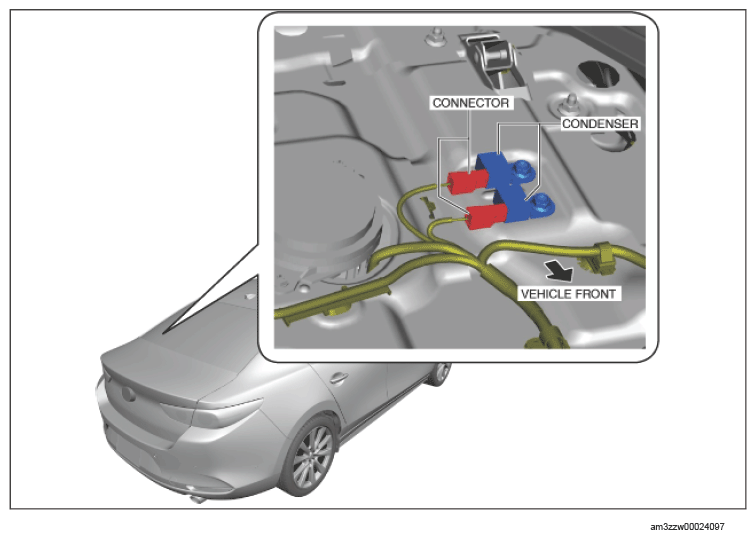

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

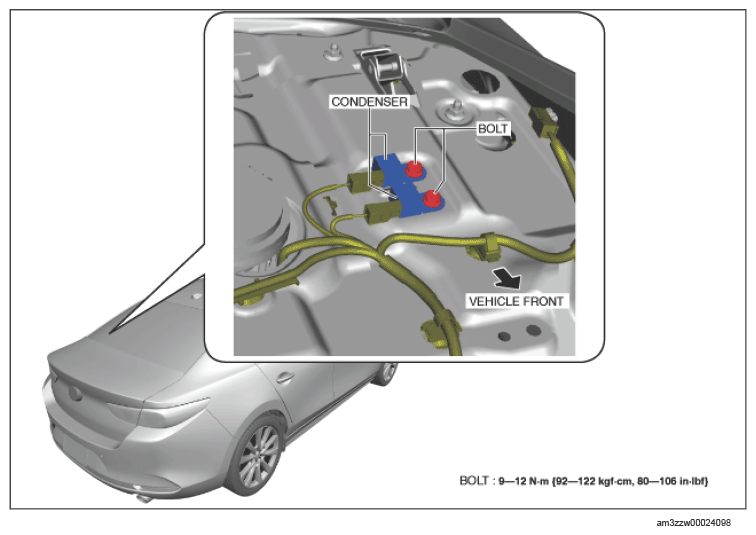

Fig 1: Condensers Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the condensers.
Install in the reverse order of removal.
