Commander Switch: L.H.D.

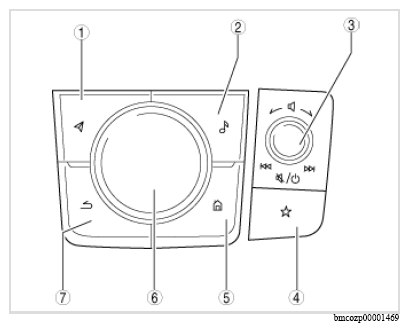

G16377519

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no	Refer to
1	Map button
2	Entertainment button
3	Volume knob
4	Favorites button
5	Home button
6	Commander knob
7	Back button
