Wiper/Washer System Location Index

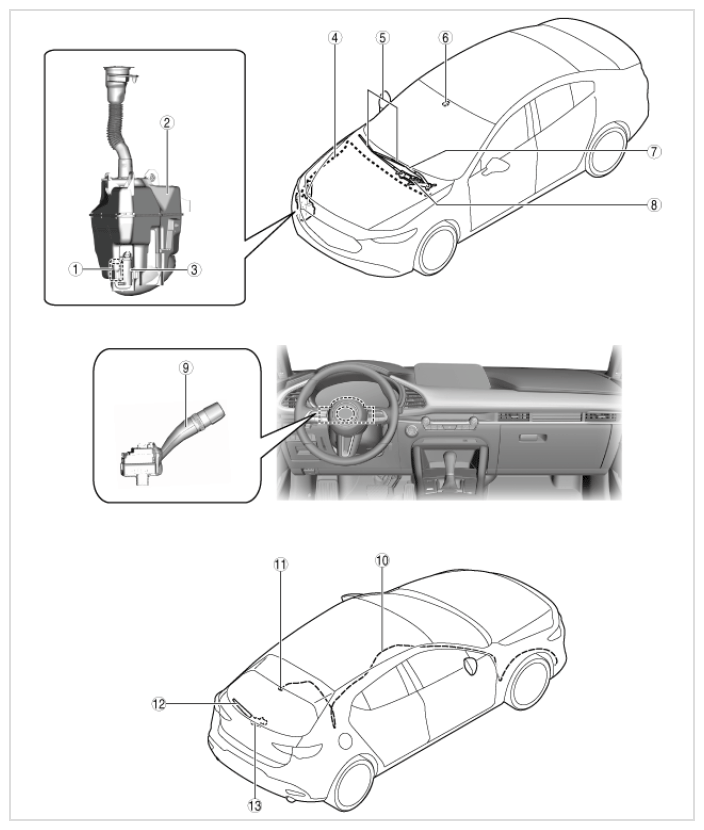

Fig 1: Wiper/Washer System Components Location

Courtesy of MAZDA MOTORS CORP.

WIPER/WASHER SYSTEM COMPONENT OPERATIONS

Component no	Refer to
1	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .) (See WASHER FLUID-LEVEL SENSOR INSPECTION .)
2	Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
3	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .) (See WASHER MOTOR INSPECTION .)
4	Windshield washer hose (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
5	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
6	Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION .) (See RAIN SENSOR INSPECTION .)
7	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER BLADE AND RUBBER REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER ARM AND BLADE INITIAL SETTING .)
8	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER MOTOR AND LINK INSPECTION .)
9	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .) (See WIPER AND WASHER SWITCH INSPECTION .)
10	Rear washer hose (5HB) (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
11	Rear washer nozzle (5HB) (See REAR WASHER NOZZLE REMOVAL/INSTALLATION .) (See REAR WASHER NOZZLE ADJUSTMENT .)
12	Rear wiper arm and blade (5HB) (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
13	Rear wiper motor (5HB) (See REAR WIPER MOTOR REMOVAL/INSTALLATION .) (See REAR WIPER MOTOR INSPECTION .)
