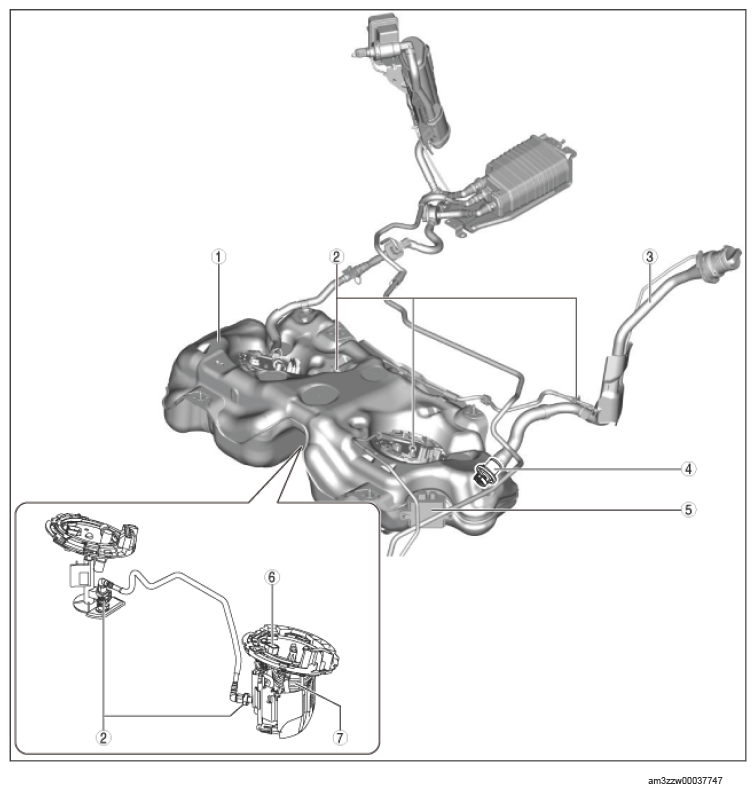

Fuel Tank Side
FUEL SYSTEM COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See FUEL TANK INSPECTION [SKYACTIV-G 2.5T] .) |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 3. | Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 4 | Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-G 2.5T] .) |
| 5 | Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G 2.5T] .) |
| 6 | Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 7 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T] .) (See FUEL PUMP UNIT INSPECTION [SKYACTIV-G 2.5T] .) |
