Speaker Inspection: Tweeter

Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION .)

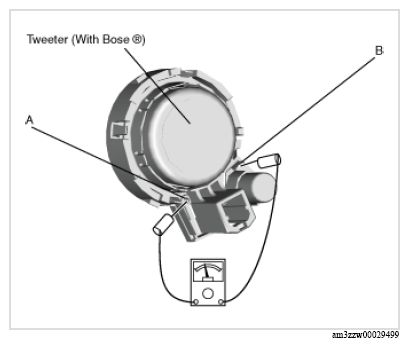

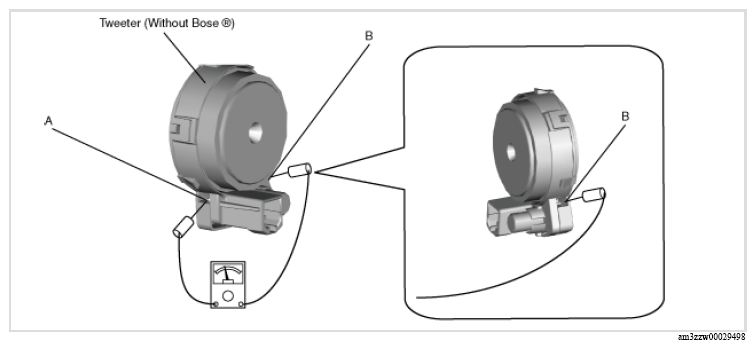

Inspect the resistance between positions A and B shown in the figure below.
Tweeter resistance

Without Bose ®: 3.9-4.7 ohms

With Bose ®: 3.4 ohms

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the tweeter. (See TWEETER REMOVAL/INSTALLATION .)
