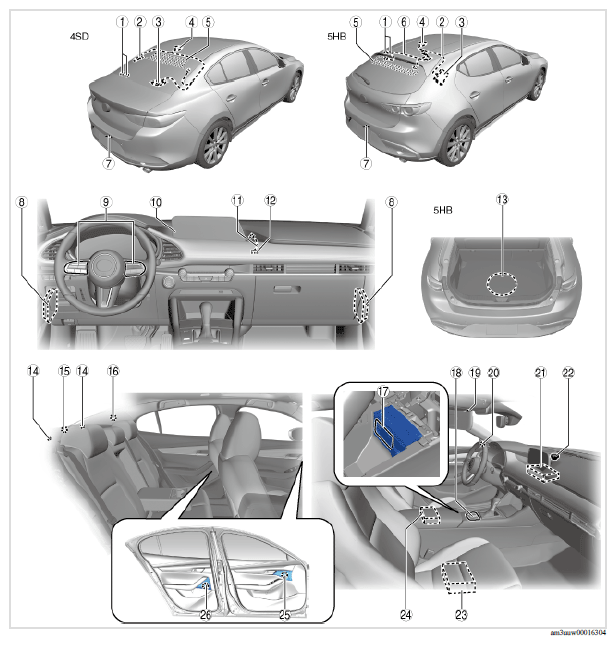

| 1 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION .) |
| 2 |
Antenna feeder No. 1
Antenna amplifier (4SD)
(See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .)
(See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) |
| 3 |
Remote tuner (RT)
(See REMOTE TUNER (RT) REMOVAL/INSTALLATION .)
(See REMOTE TUNER (RT) INSPECTION .) |
| 4 |
Center roof antenna (with sirius satellite radio system)
(See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .)
(See CENTER ROOF ANTENNA INSPECTION .) |
| 5 |
Glass antenna
(See GLASS ANTENNA INSPECTION .) |
| 6 |
Antenna feeder No. 2 (5HB)
Antenna amplifier (5HB)
(See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .)
(See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) |
| 7 |
Rear mount camera
(See REAR MOUNT CAMERA REMOVAL/INSTALLATION .)
(See REAR MOUNT CAMERA INSPECTION .) |
| 8 |
Cowl side woofer
(See COWL SIDE WOOFER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 9 |
Steering switch
(See STEERING SWITCH REMOVAL/INSTALLATION .)
(See STEERING SWITCH INSPECTION .) |
| 10 |
Center display
(See CENTER DISPLAY REMOVAL/INSTALLATION .) |
| 11 |
Global positioning system (GPS) antenna feeder
(See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA FEEDER REMOVAL/INSTALLATION .) |
| 12 |
Global positioning system (GPS) antenna
(See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .) |
| 13 |
Bass-box (with Bose ®) (5HB)
(See BASS-BOX REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 14 |
Rear side speaker (4SD) (with Bose ®)
(See REAR SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 15 |
Rear center speaker (with Bose ®)
(See REAR SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 16 |
Rear side speaker (5HB) (with Bose ®)
(See REAR SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 17 |
USB PORT/SD card slot hub
(See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .)
(See USB PORT/SD CARD SLOT HUB INSPECTION .) |
| 18 |
Commander switch
(See COMMANDER SWITCH REMOVAL/INSTALLATION .)
(See COMMANDER SWITCH INSPECTION .) |
| 19 |
Microphone
(See MICROPHONE REMOVAL/INSTALLATION .)
(See MICROPHONE INSPECTION .) |
| 20 |
Tweeter
(See TWEETER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 21 |
Connectivity master unit (CMU)
(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
(See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .)
(See CONNECTIVITY MASTER UNIT (CMU) INSPECTION .)
(See BLUETOOTH® PAIRING PROCEDURE .)
(See VEHICLE STATUS MONITOR SETTING .) |
| 22 |
Front center speaker (with Bose ®)
(See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 23 |
Audio amplifier
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
(See AUDIO AMPLIFIER INSPECTION .) |
| 24 |
Parking assist unit (optical)
(See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION .)
(See PARKING ASSIST UNIT (OPTICAL) INSPECTION .) |
| 25 |
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
| 26 |
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
(See SPEAKER INSPECTION .) |
