Quick Diagnostic Chart

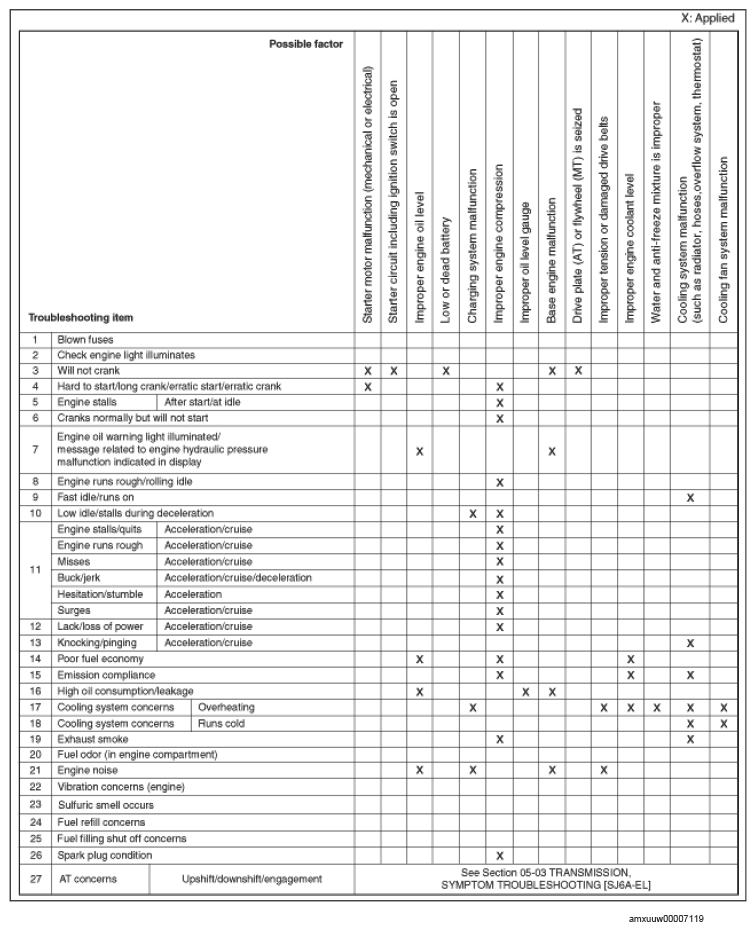

G14587852Courtesy of MAZDA MOTORS CORP.

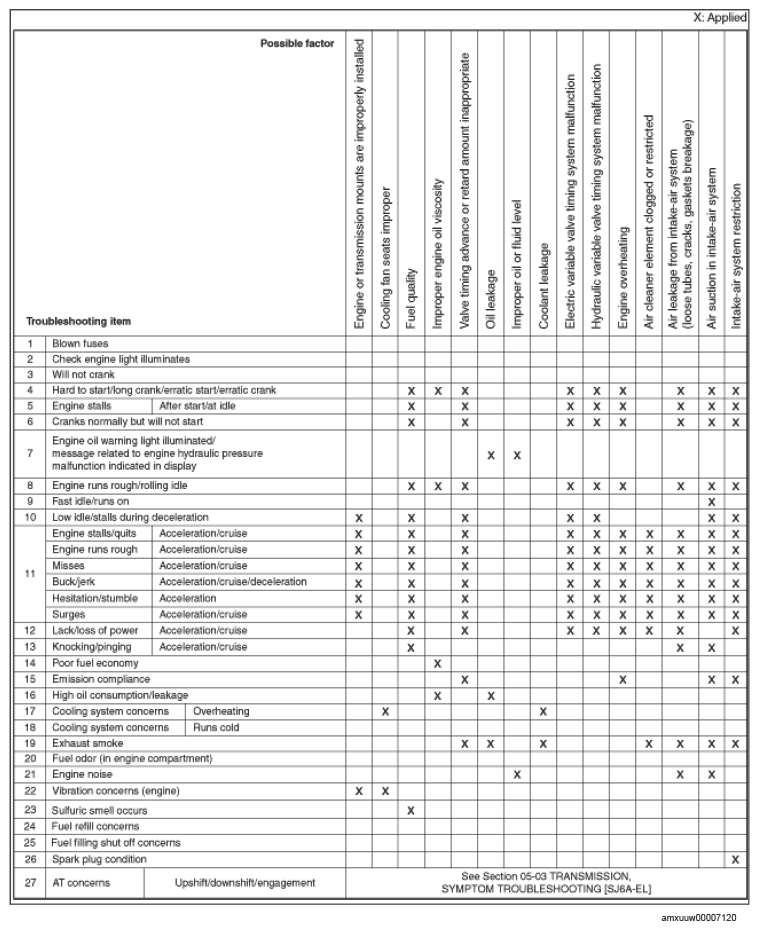

G15744458Courtesy of MAZDA MOTORS CORP.

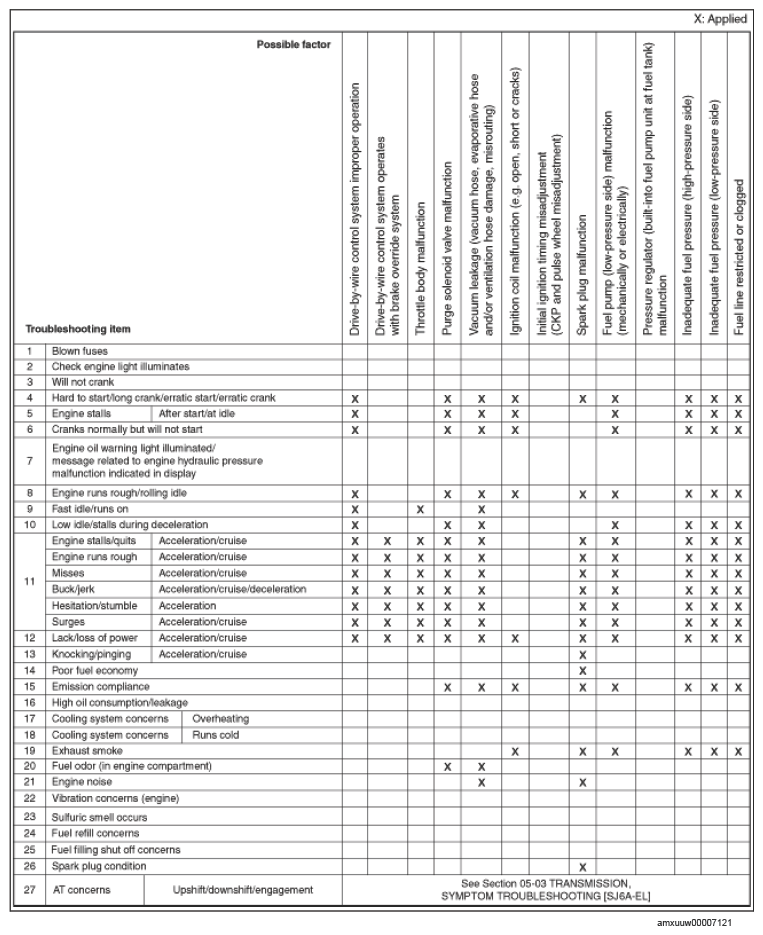

G15744459Courtesy of MAZDA MOTORS CORP.

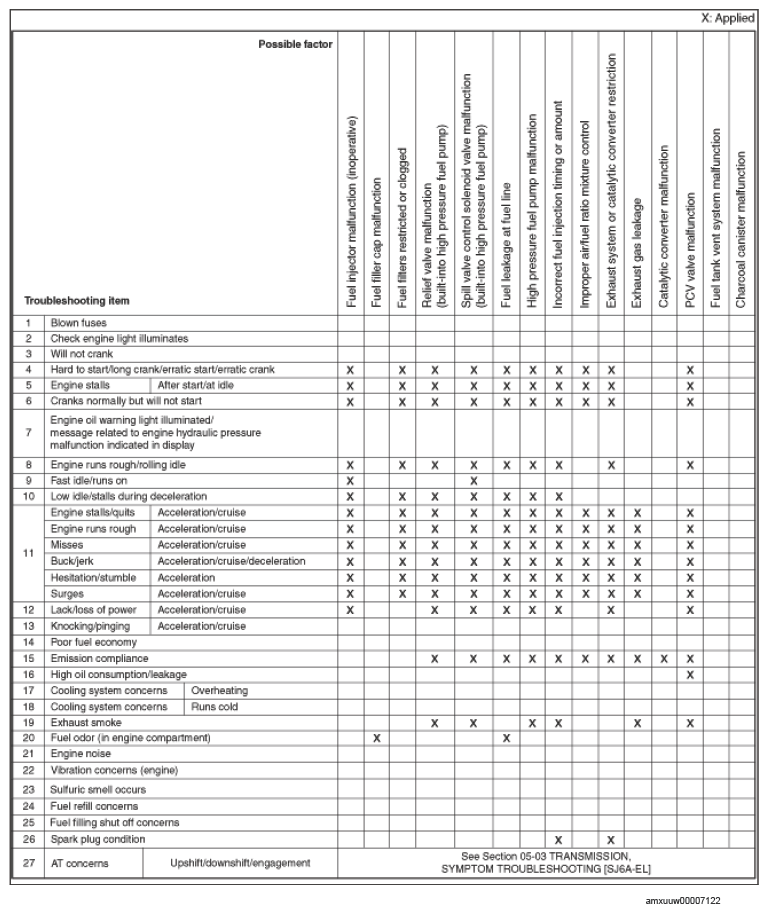

G14587855Courtesy of MAZDA MOTORS CORP.

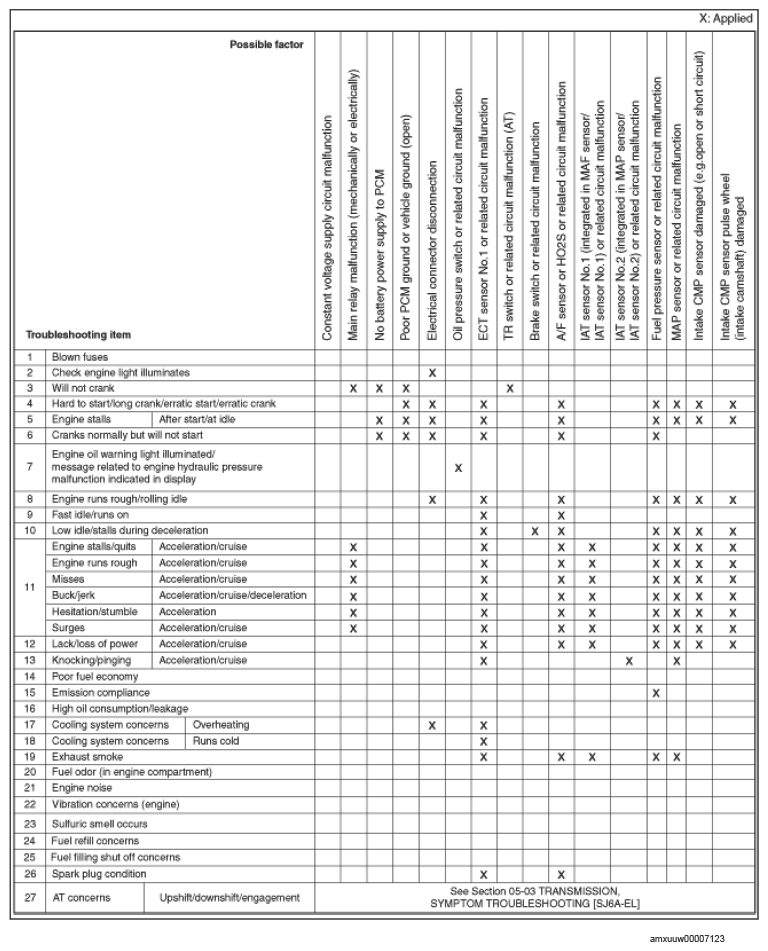

G14587856Courtesy of MAZDA MOTORS CORP.

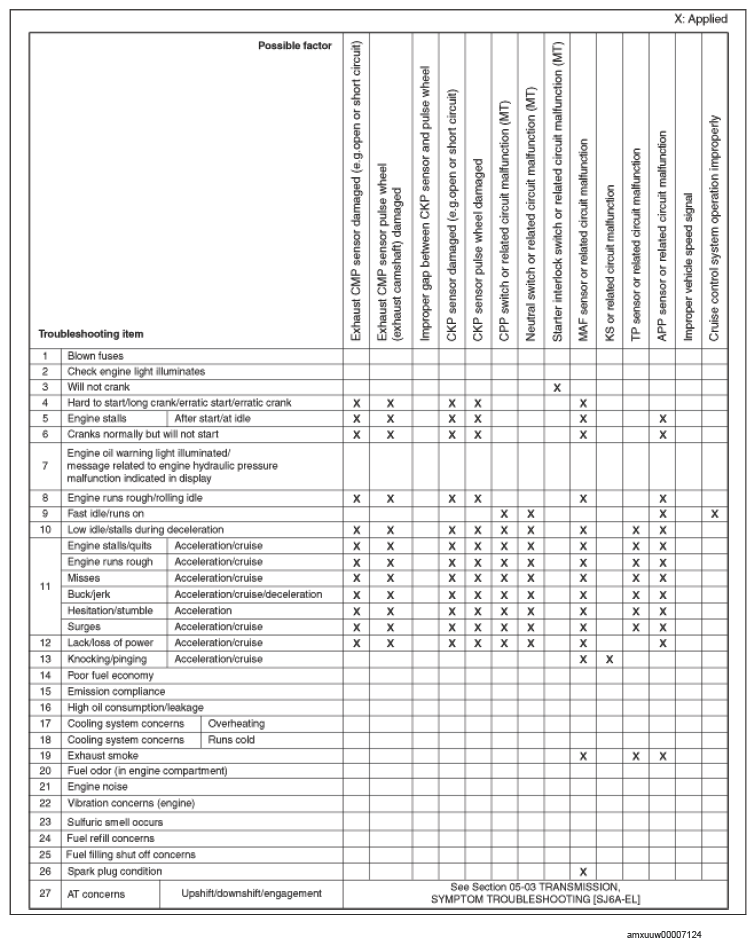

G14587857Courtesy of MAZDA MOTORS CORP.

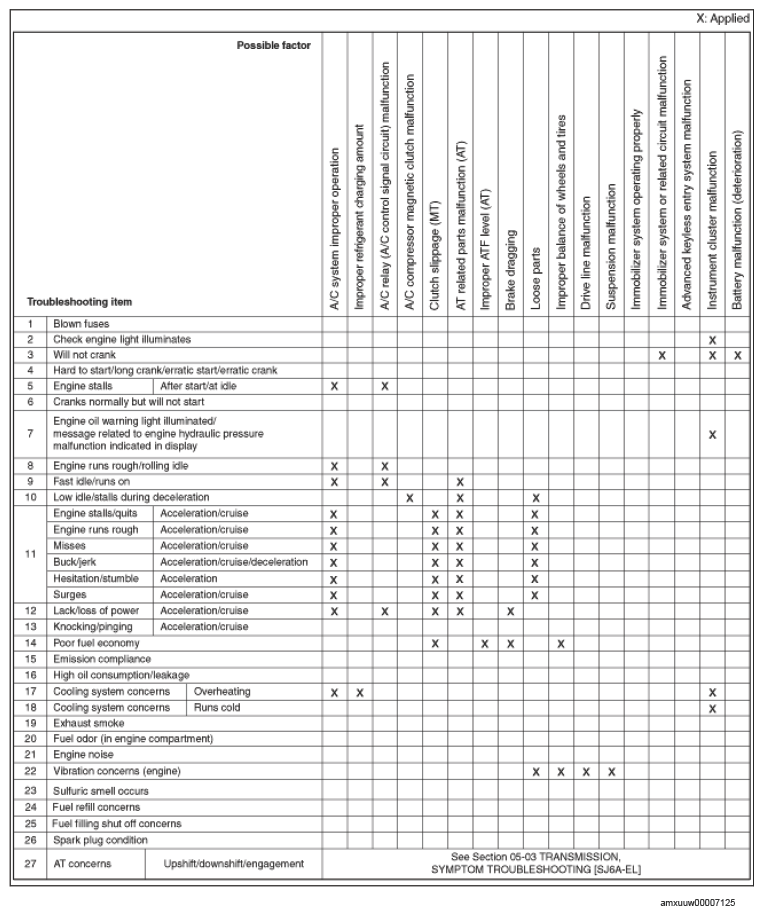

G14587858Courtesy of MAZDA MOTORS CORP.

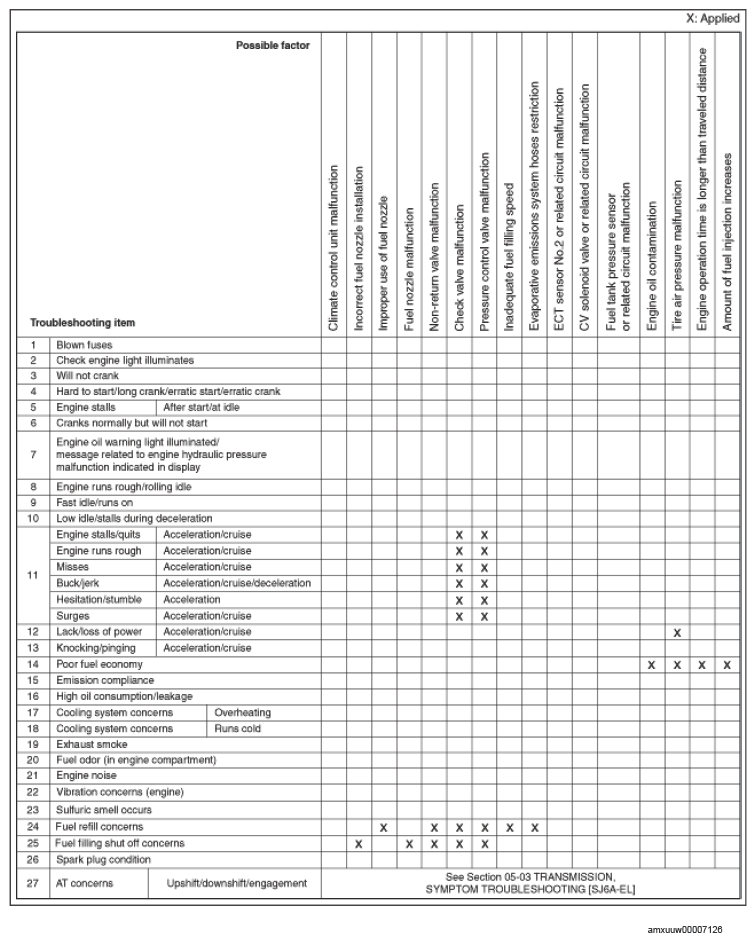

G14587859Courtesy of MAZDA MOTORS CORP.
