NO. 2 CHECK ENGINE LIGHT ILLUMINATES (SKYACTIV-G 2.0) DESCRIPTION AND POSSIBLE CAUSE
| 2 |
CHECK ENGINE LIGHT ILLUMINATES |
| DESCRIPTION |
- Check engine light illuminates incorrectly.
NOTE:
- If there is a malfunction in the engine system, the PCM stores a DTC and illuminates the check engine light.
|
| POSSIBLE CAUSE |
- Check engine light illuminates for emission-related concern (DTC is stored in PCM)

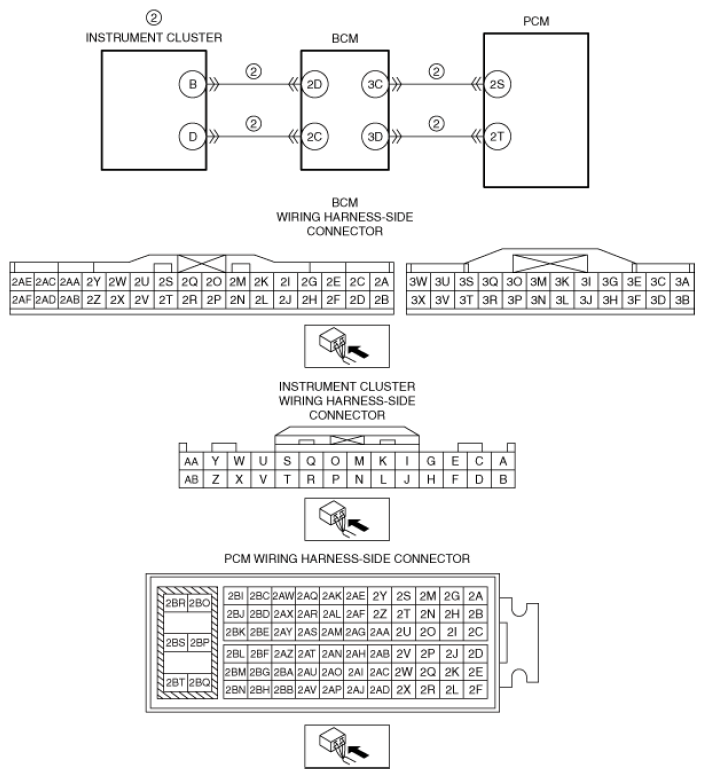

- Short to ground in wiring harness between the following terminals:
- Instrument cluster terminal B-BCM terminal 2D
- Instrument cluster terminal D-BCM terminal 2C
- BCM terminal 3C-PCM terminal 2S
- BCM terminal 3D-PCM terminal 2T
- Open circuit in wiring harness between the following terminals:
- Instrument cluster terminal B-BCM terminal 2D
- Instrument cluster terminal D-BCM terminal 2C
- BCM terminal 3C-PCM terminal 2S
- BCM terminal 3D-PCM terminal 2T
- Instrument cluster malfunction
|
