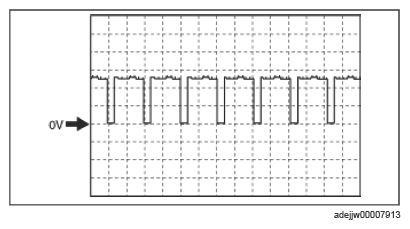

Electric variable valve timing driver (diagnostic) signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AD (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 100 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
