Starting System Location Index

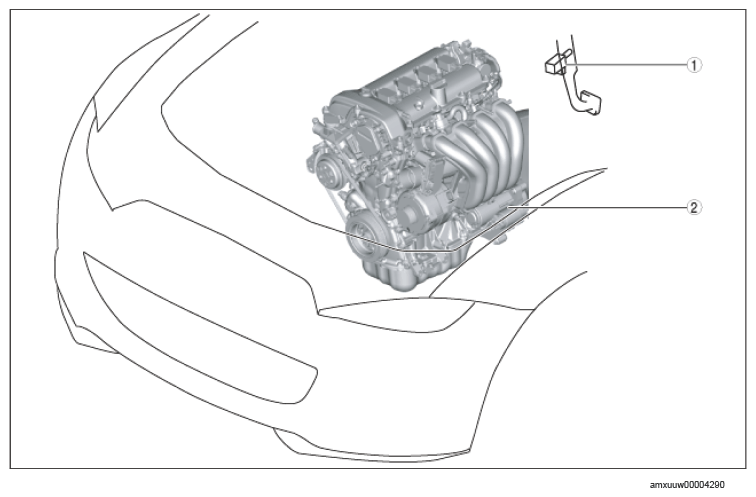

Fig 1: Starting System Components Location

Courtesy of MAZDA MOTORS CORP.

STARTING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Starter interlock switch (MT) (See STARTER INTERLOCK SWITCH INSPECTION .)
2	Starter (See STARTER REMOVAL/INSTALLATION .) (See STARTER INSPECTION .) (See STARTER DISASSEMBLY/ASSEMBLY .)
