Generator Removal Note

  1. Disconnect the A/C compressor connector.
    G14588416Courtesy of MAZDA MOTORS CORP.
  2. Remove the generator upper bolt.
  3. Remove the wiring harness bracket.
  4. Remove the generator lower bolt.

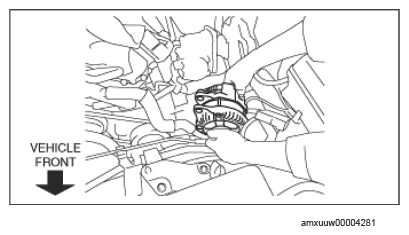

  5. Remove the generator.
G14588413Courtesy of MAZDA MOTORS CORP.
