Brush Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.
G14588392Courtesy of MAZDA MOTORS CORP.

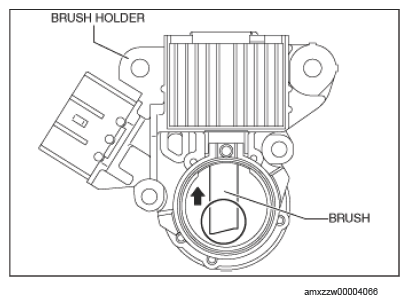

  1. Press the brush into the brush holder with it facing in the direction shown in the figure.
    G14588393Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the brush holder.
