Front Abs Wheel-Speed Sensor Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the front mudguard No. 1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

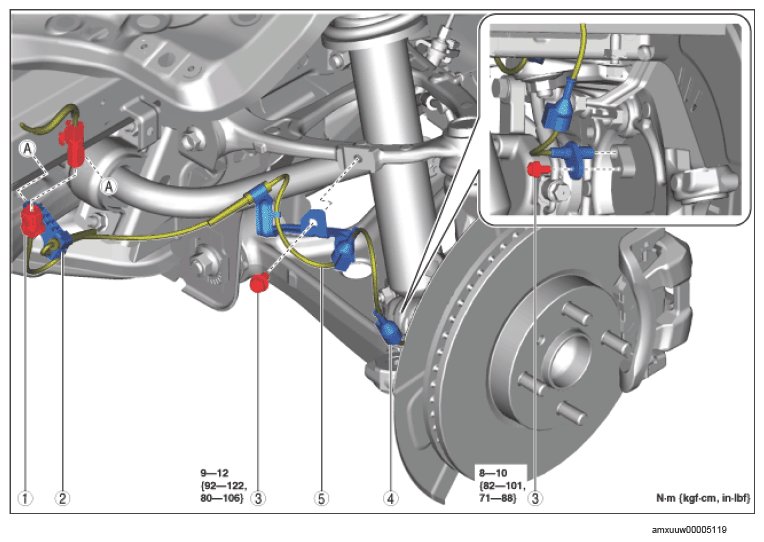

Fig 1: Front ABS Wheel-Speed Sensor Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

FRONT ABS WHEEL-SPEED SENSOR COMPONENT OPERATIONS

Component No.	Refer to
1	Connector
2	Harness clip
3	Bolt
4	Grommet
5	Front ABS wheel-speed sensor
