Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

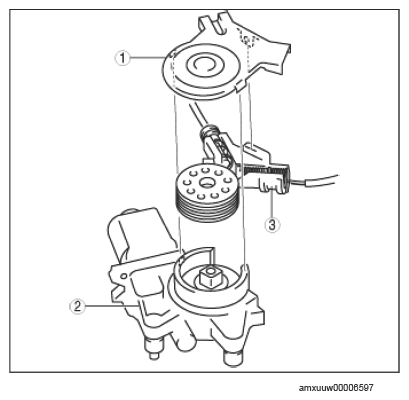

    G14595390Courtesy of MAZDA MOTORS CORP.
    POWER WINDOW REGULATOR COMPONENT OPERATIONS

    Component No. Refer to
    1 Cover
    (See COVER REMOVAL NOTE .)
    2 Power window motor
    3 Regulator
  2. Assemble in the reverse order of disassembly.
    CAUTION:
    • When installing the power window motor, be careful that the cable does not unwind from the drum.
