Glass/Windows/Mirrors Location Index

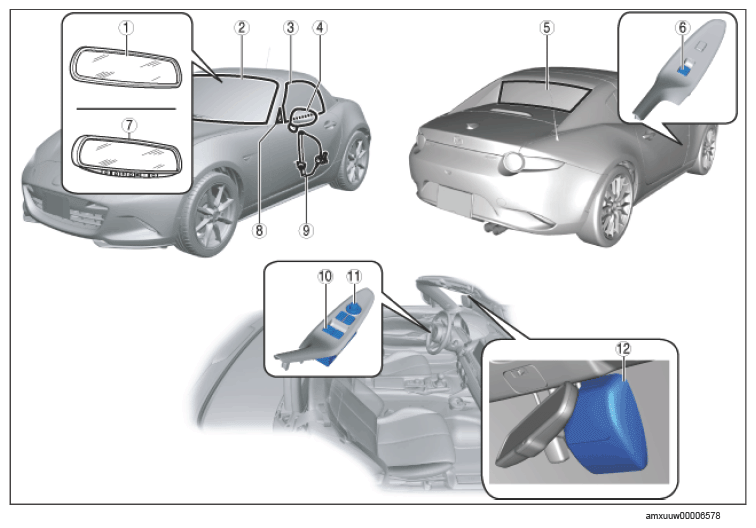

Fig 1: Glass, Windows And Mirrors Components Location

Courtesy of MAZDA MOTORS CORP.

GLASS, WINDOWS AND MIRRORS COMPONENT OPERATIONS

Component No.	Refer to
1	Rearview mirror (without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
2	Windshield (See WINDSHIELD REMOVAL .) (See WINDSHIELD INSTALLATION .)
3	Door glass (See DOOR GLASS REMOVAL/INSTALLATION .) (See DOOR GLASS ADJUSTMENT .)
4	Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR INSPECTION .) (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .) (See OUTER MIRROR GLASS INSPECTION .) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
5	Rear window glass (retractable hardtop) (See REAR WINDOW GLASS REMOVAL/INSTALLATION .) (See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR INSPECTION .) (See REAR WINDOW DEFOGGER INSPECTION .) (See REAR WINDOW DEFOGGER REPAIR .)
6	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
7	Auto-dimming rearview mirror (with auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .) (See AUTO-DIMMING REARVIEW MIRROR INSPECTION .)
8	Door quarter glass (See DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
9	Power window regulator (See POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) (See POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .) (See POWER WINDOW MOTOR INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
10	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
11	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR SWITCH INSPECTION .)
12	Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
