Power Window Regulator Removal/Installation

  1. Perform the door glass preparation. (See DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
    2. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    3. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)

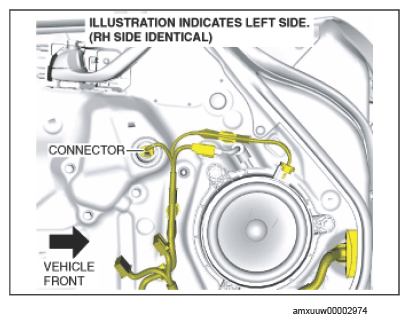

  4. Disconnect the connector.
    G14595392Courtesy of MAZDA MOTORS CORP.
  5. Remove nuts (1).

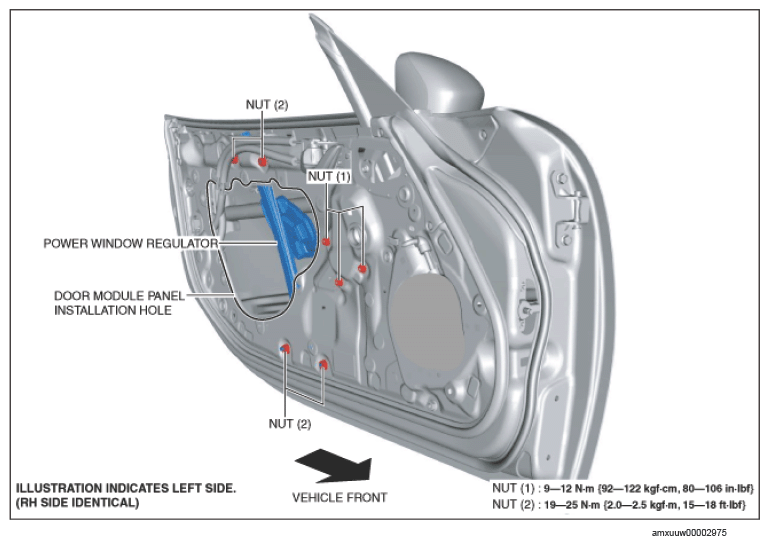

    Fig 1: Power Window Regulator, Door Module Panel Installation Hole And Nuts With Torque Specification
    G14595393Courtesy of MAZDA MOTORS CORP.
  6. Remove nuts (2).
  7. Remove the power window regulator through the door module panel installation hole.
  8. Install in the reverse order of removal.
  9. Perform the power window system initial setting. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
