DTC B1DA8-24: Incorrect Top Lock Position [Retractable Hardtop Control Module]: Notes
DTC B1DA8:24 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Incorrect top lock position |
| Detection condition |
- The retractable hardtop control module repeatedly detects that the top lock switch has failed to lock and exceeds a certain number of times.
|
| Fail-safe |
- Stops retractable hardtop operation and reverses rotation to unlock position
- Inhibits the open retractable hardtop operation.
|
| Possible cause |

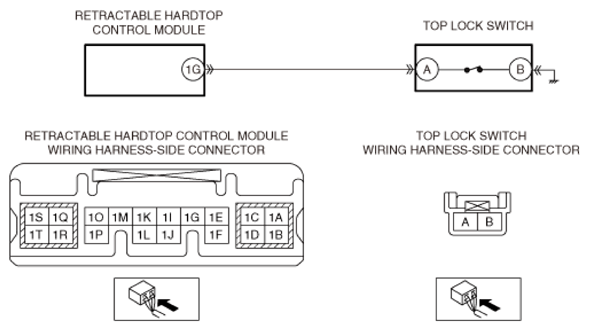

- Short to ground in wiring harness between retractable hardtop control module terminal 1G and top lock switch malfunction terminal A
- Top lock switch malfunction
- Retractable hardtop control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
