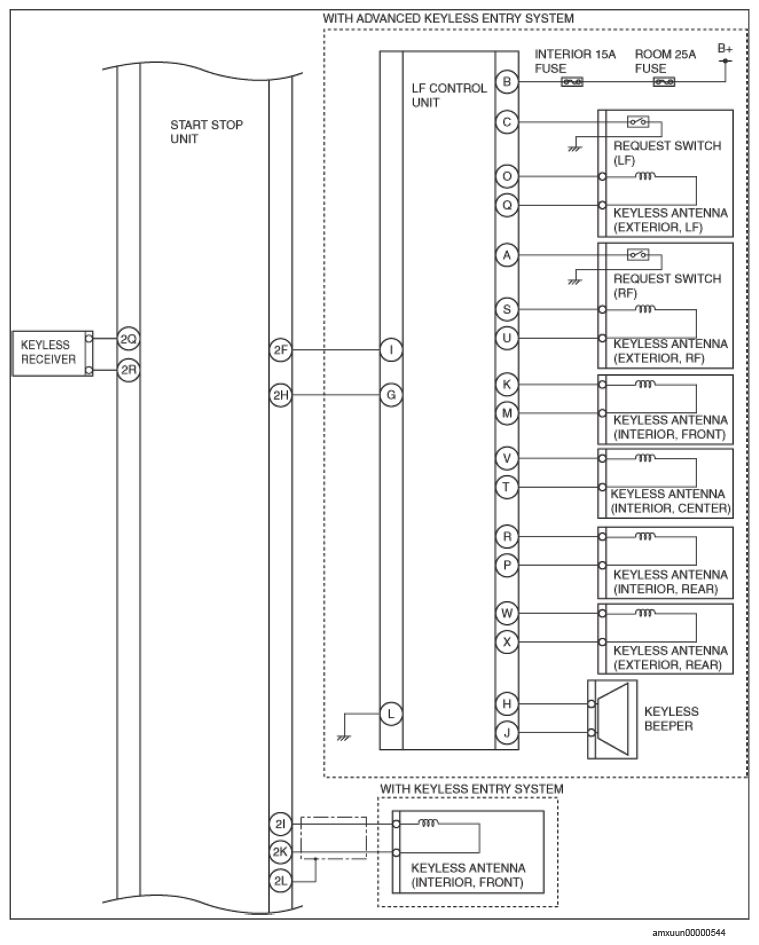

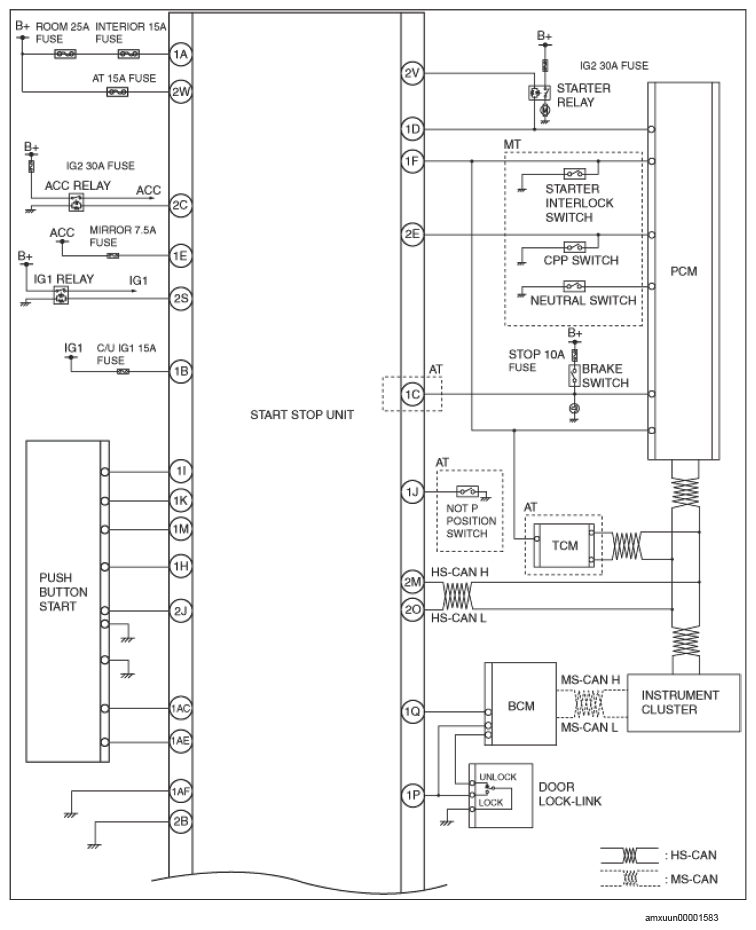

On-Board Diagnostic Wiring Diagram [Start Stop Unit]
>>
Start Stop Unit
Start Stop Unit
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
