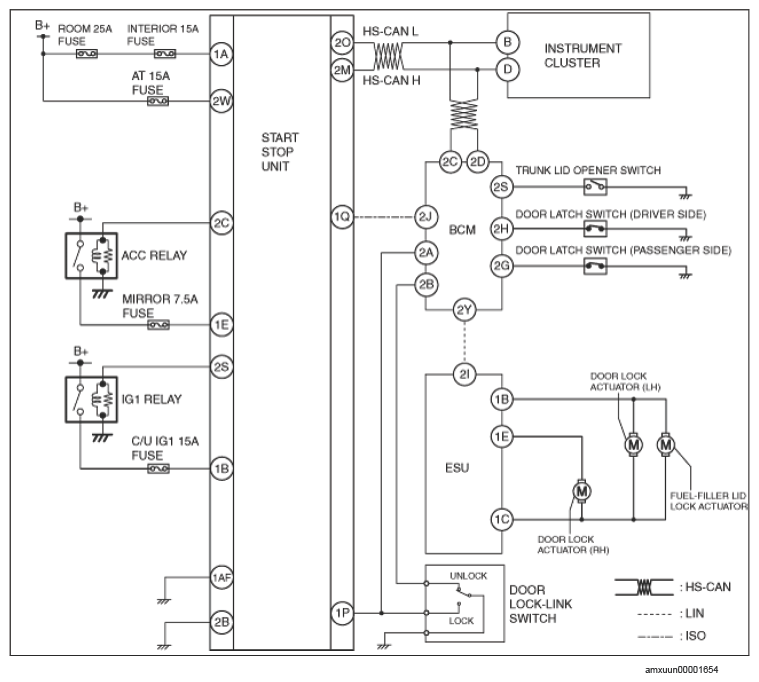

On-Board Diagnostic Wiring Diagram [Start Stop Unit]
>>

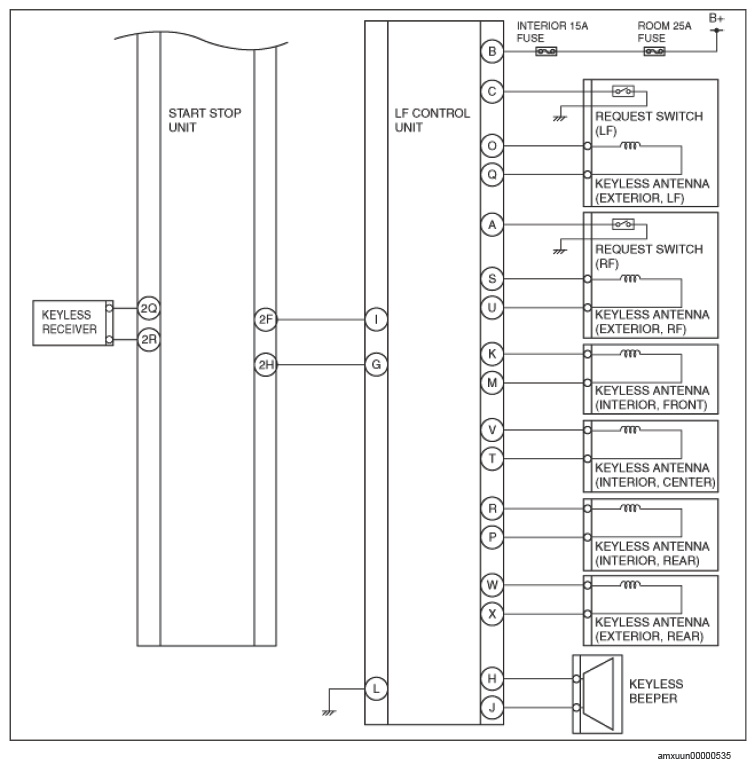

Advanced Keyless Entry System (With Advanced Keyless Entry System)
Advanced Keyless Entry System (With Advanced Keyless Entry System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
