Foreword [Start Stop Unit]
>>

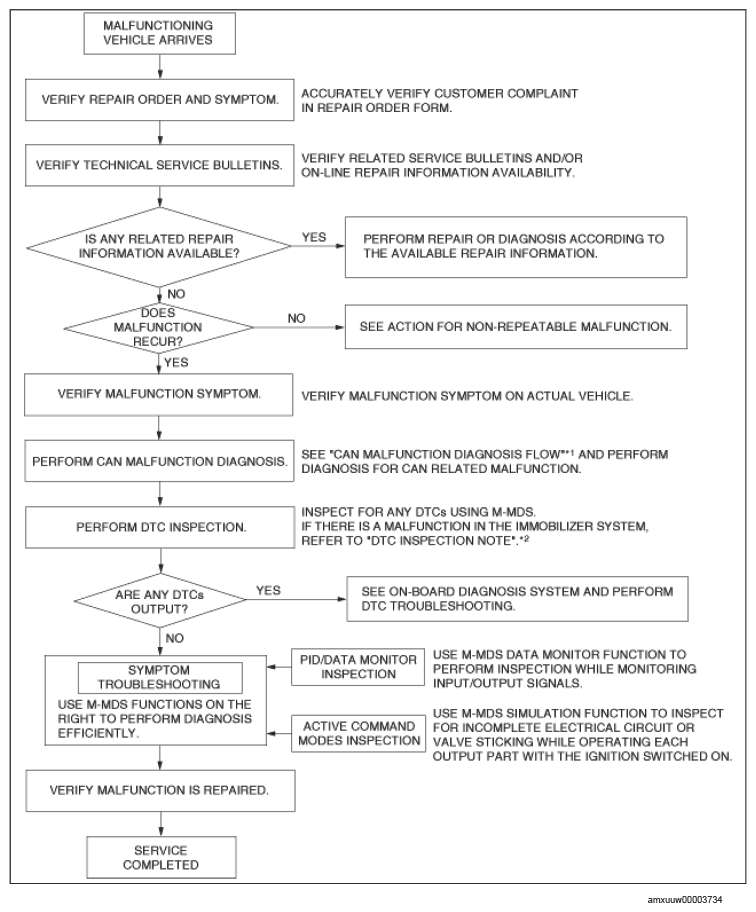

Troubleshooting Procedure
Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
*2: (See
DTC Inspection Note
.)
