DTC U0028-87: Communication Error With BCM [Start Stop Unit]: Notes
DTC U0028:87 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Communication error with BCM |
| Detection condition |
- Start stop unit detects the communication error with BCM 10 times continuously.
|
| Fail-safe |
- Performs control with the driver's side door and trunk open.
|
| Possible cause |
- BCM connector or terminal malfunction
- Start stop unit connector or terminal malfunction

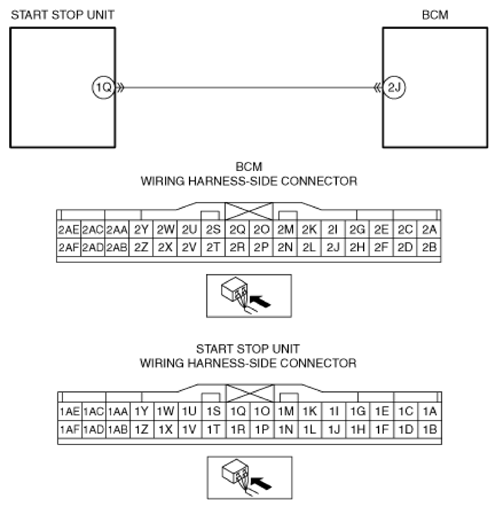

- Short to ground in wiring harness between start stop unit terminal 1Q and BCM terminal 2J
- Open circuit in wiring harness between start stop unit terminal 1Q and BCM terminal 2J
- BCM malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
