DTC P1708-24: Starter Interlock Switch Circuit Malfunction [Start Stop Unit]: Notes

DTC P1708:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Starter interlock switch circuit malfunction
Detection condition	Start stop unit detects an open circuit in the starter interlock switch circuit for 0.5 s or more for a continuous 5 times with the ignition switched ON (engine off or on).
Fail-safe	Change to the back-up mode.

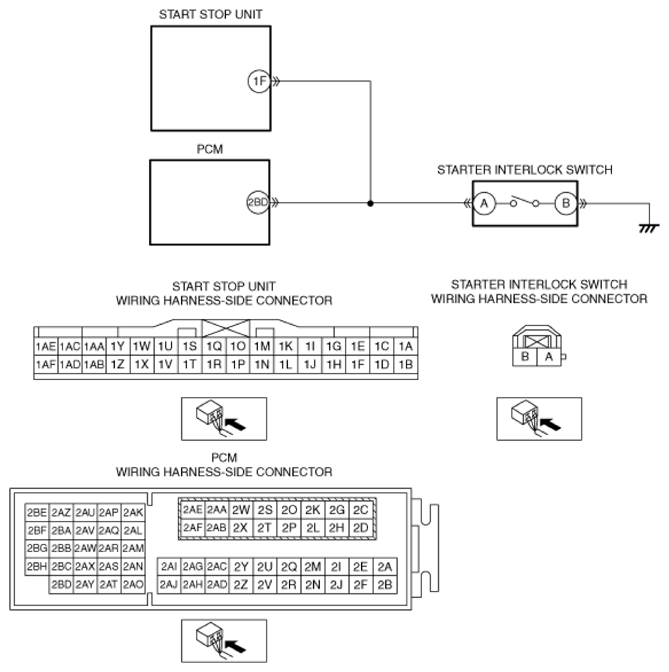

Possible cause	Starter interlock switch connector or terminal malfunction Open circuit in wiring harness between starter interlock switch terminal B and body ground Starter interlock switch malfunction PCM connector or terminal malfunction Start stop unit connector or terminal malfunction Open circuit in wiring harness between the following terminals: PCM terminal 2BD-Starter interlock switch terminal A Start stop unit terminal 1F-Starter interlock switch terminal A PCM malfunction Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
