DTC P0830-23: Clutch Pedal Position Switch Circuit Malfunction [Start Stop Unit]: Notes

DTC P0830:23 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Clutch pedal position switch circuit malfunction
Detection condition	Start stop unit detects that the clutch pedal position switch is stuck on for 10 min or more.
Fail-safe	Change to the back-up mode. Perform the control with clutch pedal position switch turned off.

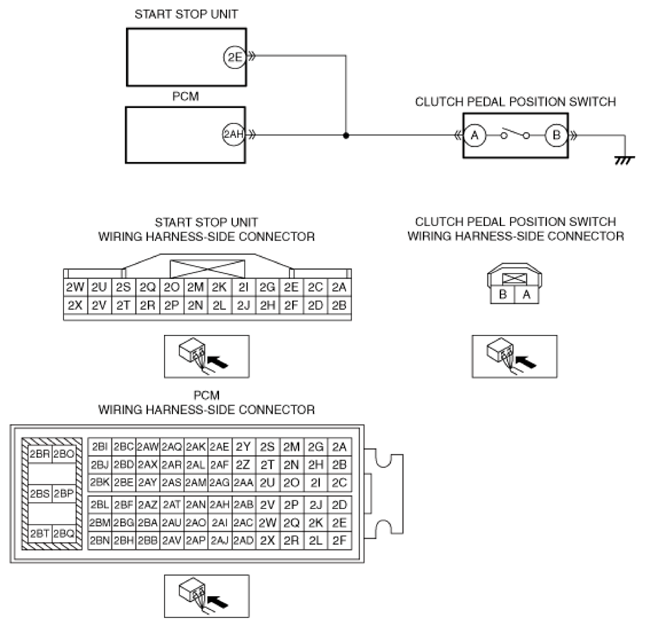

Possible cause	DTCs are stored in the PCM. Clutch pedal position switch connector or terminal malfunction Clutch pedal position switch malfunction Start stop unit connector or terminal malfunction PCM connector or terminal malfunction Short to ground in the wiring harness between the following terminals: Start stop unit terminal 2E-Clutch pedal position switch terminal A PCM terminal 2AH-Clutch pedal position switch terminal A Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
