DTC P081C-24: Not P Position Switch Circuit Malfunction [Start Stop Unit]: Notes

DTC P081C:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	NOT P position switch circuit malfunction
Detection condition	Start stop unit detects that the NOT P position switch is stuck off for 5 s or more for a continuous 5 times with the ignition switched ON (engine off or on).
Fail-safe	Perform the NOT P position switch control in a position other than P.

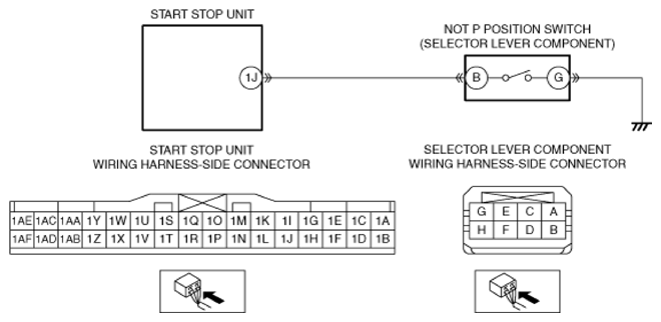

Possible cause	Selector lever component connector or terminal malfunction Open circuit in wiring harness between selector lever component terminal G and body ground NOT P position switch malfunction Start stop unit connector or terminal malfunction Open circuit in wiring harness between start stop unit terminal 1J and selector lever component terminal B Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
