DTC P0615-16: Starter Relay Circuit Malfunction [Start Stop Unit]: Notes
DTC P0615:16 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Starter relay circuit malfunction |
| Detection condition |
- Start stop unit detects that the starter relay circuit voltage that is less than the specification for 0.05 s or more during cranking.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Starter relay malfunction
- Start stop unit connector or terminal malfunction

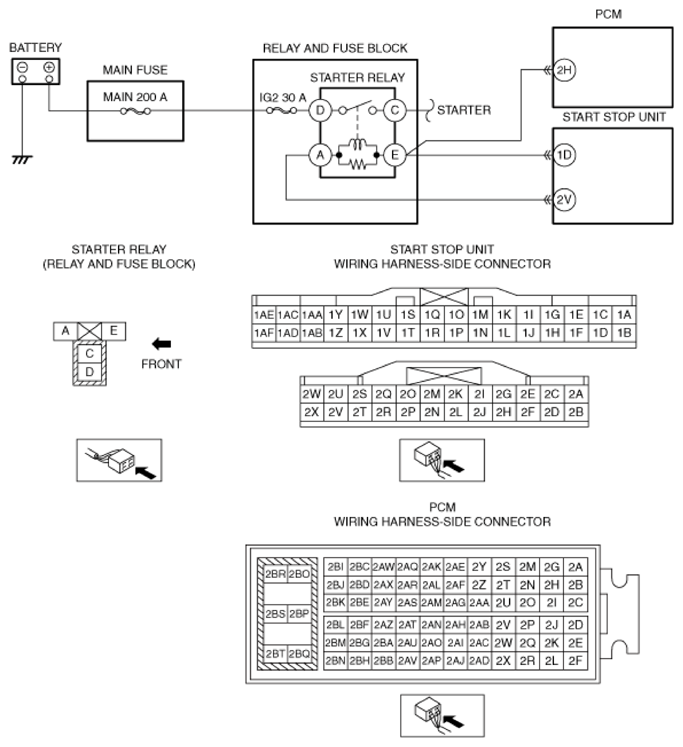

- Short to ground in wiring harness between starter relay terminal A and start stop unit terminal 2V
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
