DTC P0615-11: Starter Relay Circuit Malfunction [Start Stop Unit]: Notes
DTC P0615:11 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Starter relay circuit malfunction |
| Detection condition |
- Start stop unit detects that the starter relay monitor circuit voltage of less than 2.2 V for 0.2 s or more with the ignition switched off.
|
| Fail-safe |
Not applicable |
| Possible cause |
- DTCs are stored in the PCM.
- Starter relay malfunction
- Start stop unit connector or terminal malfunction
- PCM connector malfunction

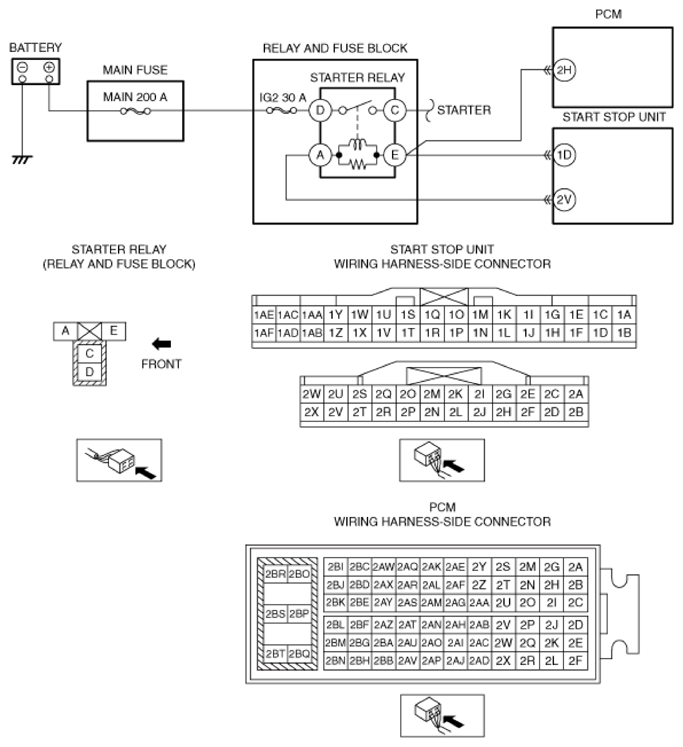

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 1D-Starter relay terminal E
- Starter relay terminal E-PCM terminal 2H
- Start stop unit terminal 2V-Starter relay terminal A
- PCM malfunction
- Start stop unit malfunction
|
