DTC C0052-14: Steering Angle Sensor A Signal Circuit Malfunction [Start Stop Unit]: Notes
DTC C0052:14 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Steering angle sensor A signal circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the steering angle sensor A signal circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Steering angle sensor connector or terminal malfunction Start stop unit connector or terminal malfunction

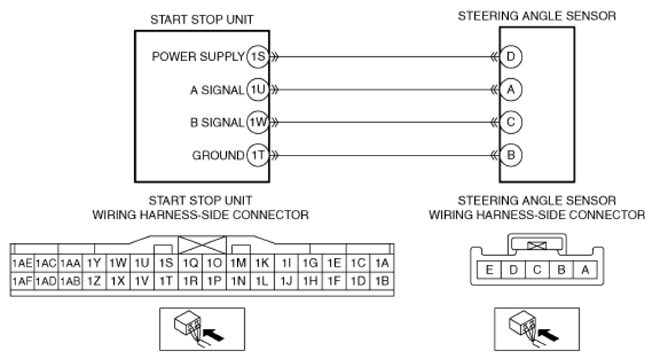

- Short to ground in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Open circuit in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Steering angle sensor malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
