DTC C0040-24: Brake Switch (No. 1 Signal) Circuit Malfunction [Start Stop Unit]: Notes

DTC C0040:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Brake switch (No. 1 signal) circuit malfunction
Detection condition	The start stop unit detected the following condition 5 times continuously with the ignition switched ON (engine off or on). The brake switch (No. 1 signal) is ON for a continuous 3 s or more even though the brake switch (No. 2 signal) changes.
Fail-safe	Determined by brake switch (No. 2 signal) with the brake pedal depressed.

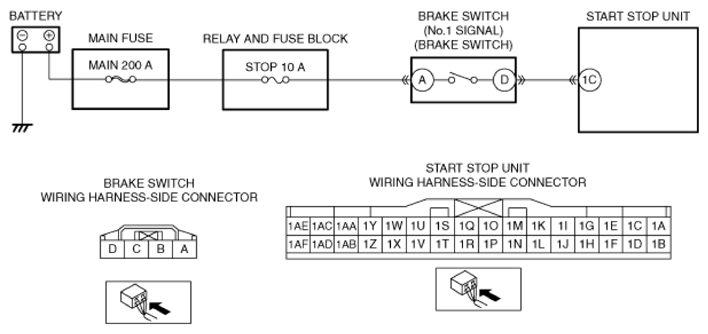

Possible cause	Brake switch connector or terminal malfunction Brake switch (No. 1 signal) malfunction Start stop unit connector or terminal malfunction Short to power supply in wiring harness between brake switch terminal D and start stop unit terminal 1C Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
