DTC B13C3-29: Communication Error Between Start Stop Unit And LF Control Unit [Start Stop Unit]: Notes
DTC B13C3:29 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Communication error between start stop unit and LF control unit |
| Detection condition |
- Start stop unit detects the communication error with the LF control unit 10 times.
|
| Fail-safe |
- Inhibits the door lock/unlock control using the advanced keyless entry system.
|
| Possible cause |
- LF control unit connector or terminal malfunction
- Start stop unit connector or terminal malfunction

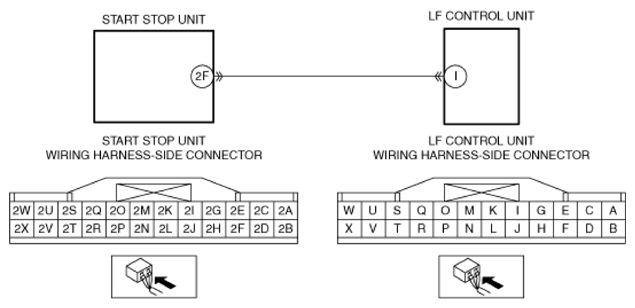

- Short to ground in wiring harness between start stop unit terminal 2F and LF control unit terminal I
- Open circuit in wiring harness between start stop unit terminal 2F and LF control unit terminal I
- LF control unit malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
