With Keyless Entry System
DTC B10C9:1F (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE - WITH KEYLESS ENTRY SYSTEM
| Description |
Keyless antenna (interior, front) circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the keyless antenna (interior, front) with the ignition switched off.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Keyless antenna (interior, front) connector or terminal malfunction
- Start stop unit connector or terminal malfunction

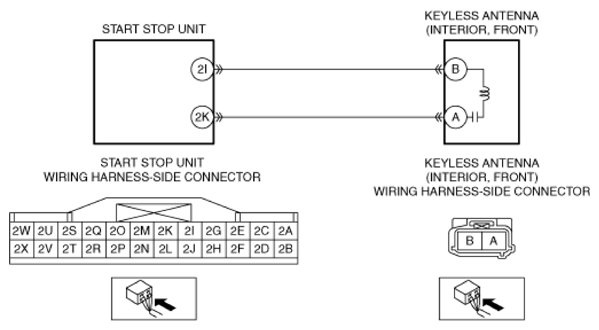

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 2I-Keyless antenna (interior, front) terminal B
- Start stop unit terminal 2K-Keyless antenna (interior, front) terminal A
- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 2I-Keyless antenna (interior, front) terminal B
- Start stop unit terminal 2K-Keyless antenna (interior, front) terminal A
- Keyless antenna (interior, front) malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
