DTC B10AC-13: Cruise Control Switch Circuit Malfunction [Start Stop Unit]: Notes
DTC B10AC:13 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Cruise control switch circuit malfunction |
| Detection condition |
- Start stop unit detected an open circuit in the cruise control switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Instrument cluster configuration error
- Clock spring connector or terminal malfunction
- Clock spring malfunction
- Start stop unit connector or terminal malfunction

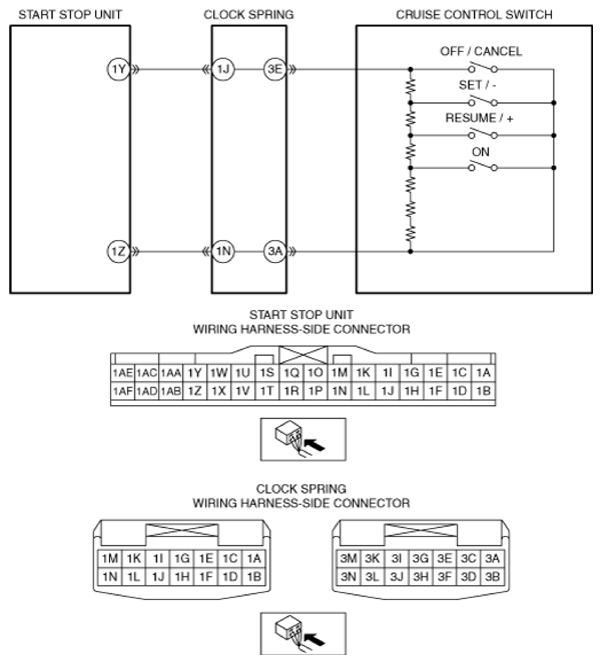

- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1Y-Clock spring terminal 1J
- Start stop unit terminal 1Z-Clock spring terminal 1N
- Cruise control switch malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
