DTC B108C-24: Push Button Start Switch 2 Circuit Malfunction [Start Stop Unit]: Notes

DTC B108C:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Push button start switch 2 circuit malfunction
Detection condition	Start stop unit detects that the push button start switch 2 is kept in an off condition 5 times or more even though the push button start switch 1 is on.
Fail-safe	Not applicable

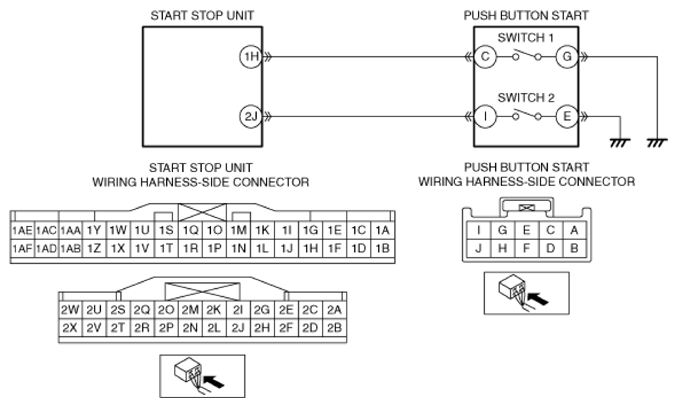

Possible cause	Push button start connector or terminal malfunction Open circuit in wiring harness between push button start terminal E and body ground Start stop unit connector or terminal malfunction Open circuit in wiring harness between start stop unit terminal 2J and push button start terminal I Push button start switch 2 malfunction Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
