DTC B108C-23: Push Button Start Switch 2 Circuit Malfunction [Start Stop Unit]: Notes
DTC B108C:23 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Push button start switch 2 circuit malfunction |
| Detection condition |
- Start stop unit detects the push button start switch 2 is stuck on for 120 s or more.
|
| Fail-safe |
- Perform the control with the push button start switch 2 turned off.
|
| Possible cause |
- Push button start connector or terminal malfunction
- Start stop unit connector or terminal malfunction

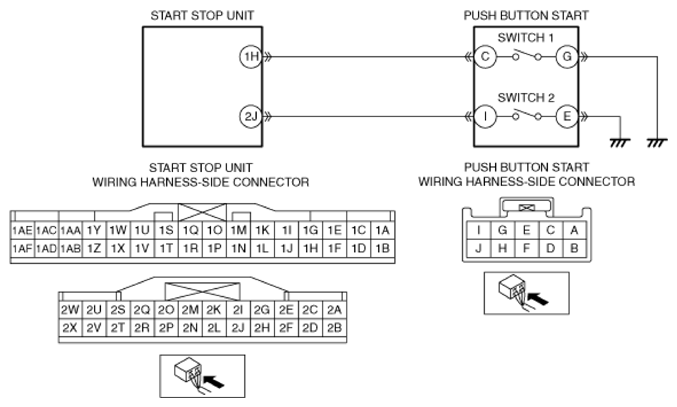

- Short to ground in wiring harness between start stop unit terminal 2J and push button start terminal I
- Push button start switch 2 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
