DTC B108B-24: Push Button Start Switch 1 Circuit Malfunction [Start Stop Unit]: Notes

DTC B108B:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Push button start switch 1 circuit malfunction
Detection condition	Start stop unit detects that the push button start switch 1 is kept in an off condition 5 times or more even though the push button start switch 2 is on.
Fail-safe	Not applicable

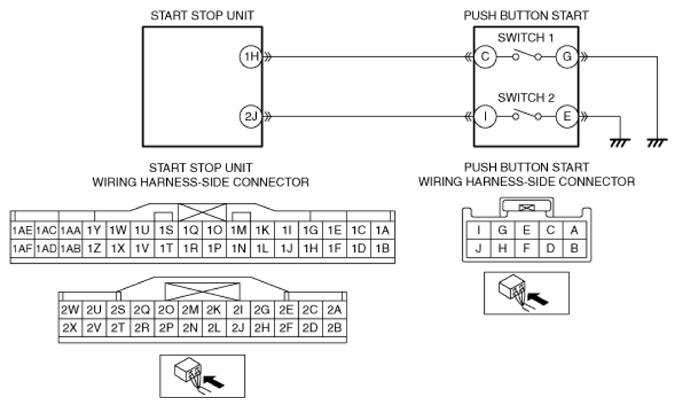

Possible cause	Push button start connector or terminal malfunction Open circuit in wiring harness between push button start terminal G and body ground Start stop unit connector or terminal malfunction Open circuit in wiring harness between start stop unit terminal 1H and push button start terminal C Push button start switch 1 malfunction Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
