Water Outlet Component Removal Note

  1. Disconnect the upper radiator hose.

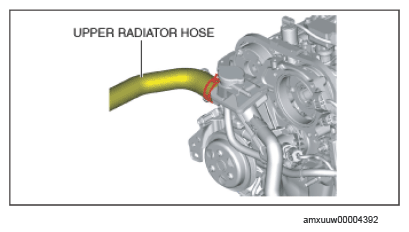

    G14588044Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the heater hose.

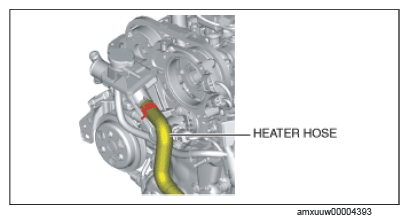

    G14588045Courtesy of MAZDA MOTORS CORP.
  3. Set the engine coolant temperature sensor No. 1 wiring harness aside using the following procedure:

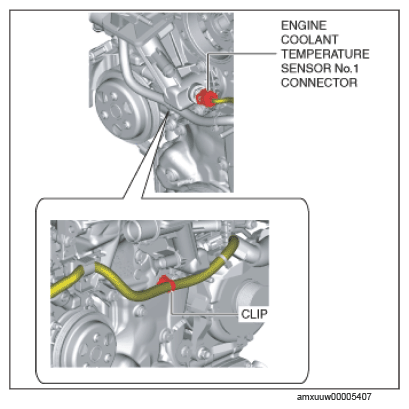

    G14588046Courtesy of MAZDA MOTORS CORP.
    1. Disconnect the engine coolant temperature sensor No. 1 connector.
    2. Remove the clip and set the wiring harness aside.
  4. Remove the water outlet component.

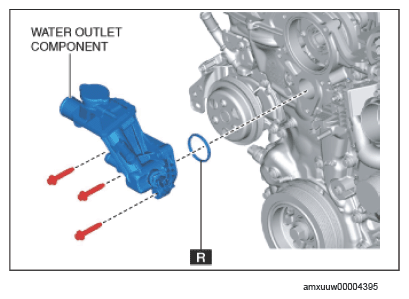

    G14588047Courtesy of MAZDA MOTORS CORP.
