Engine Mount (LH): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

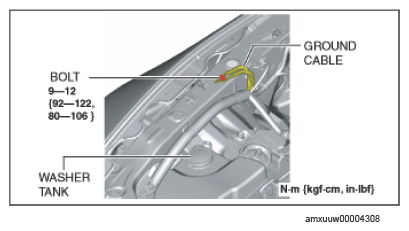

  2. Remove the bolt shown in the figure and set the ground cable aside.
    Fig 1: Ground Cable Bolt With Torque Specification
    G14587937Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (LH). (See GENERAL PROCEDURES (SUSPENSION) .)

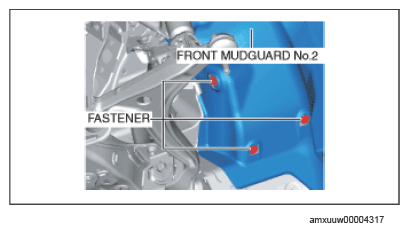

  4. Remove the fasteners shown in the figure and slightly bend back the front mudguard No. 2 (LH).
    G14587947Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (LH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

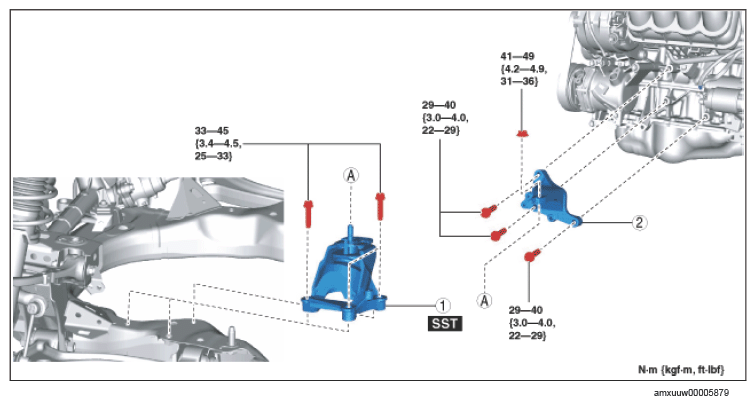

    Fig 2: Engine Mount Components Location With Torque Specification (LH)
    G14587948Courtesy of MAZDA MOTORS CORP.
    ENGINE MOUNT COMPONENT OPERATIONS

    Component no. Refer to
    1 Engine mount rubber (LH)
    (See ENGINE MOUNT RUBBER (LH) REMOVAL NOTE .)
    (See ENGINE MOUNT RUBBER (LH) INSTALLATION NOTE .)
    2 Engine mount bracket (LH)
    (See ENGINE MOUNT BRACKET (LH) REMOVAL NOTE .)
    (See ENGINE MOUNT BRACKET (LH) INSTALLATION NOTE .)
